Menadier Engineering works hard to be a  professional source for all things civil engineering. We work with our clients to build more than structures, but to build lasting relationships while delivering efficient cost-effective solutions to our clients’ most complex challenges. View some of our past projects below.

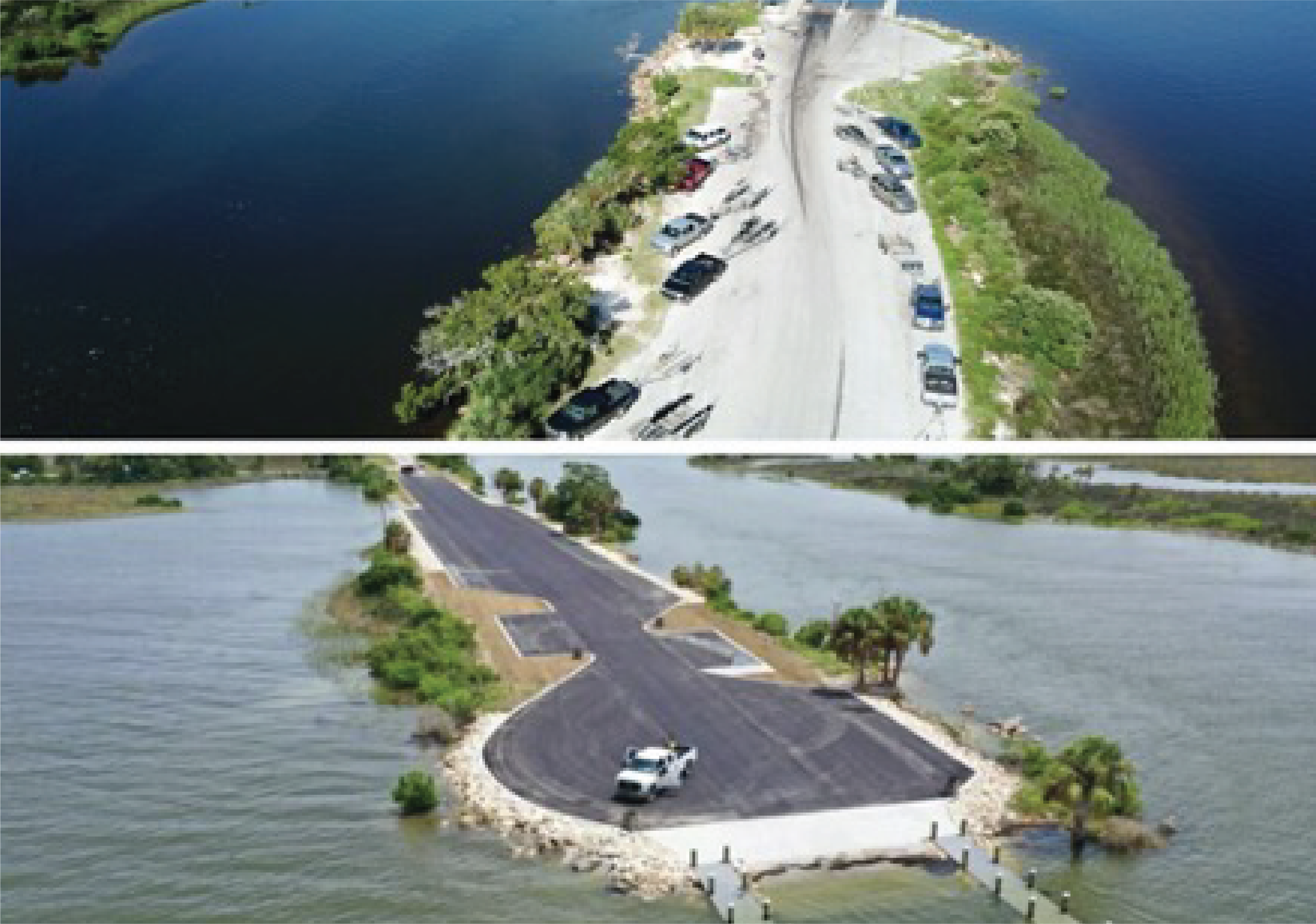

Bird Creek Boat Ramp Improvements*

Levy County, Florida

Project included demolition and reconstruction of two concrete boat ramps, fixed wooden loading docks, and parking reconfiguration.  This project was funded by the Governor through Legislative Appropriations.  Our Principal Engineer was responsible for grant administration, survey, design, permitting, and CEI throughout the project.  Permitting involved coordination with FDEP, USACE, US Coast Guard, and Southwest Florida Water Management District.

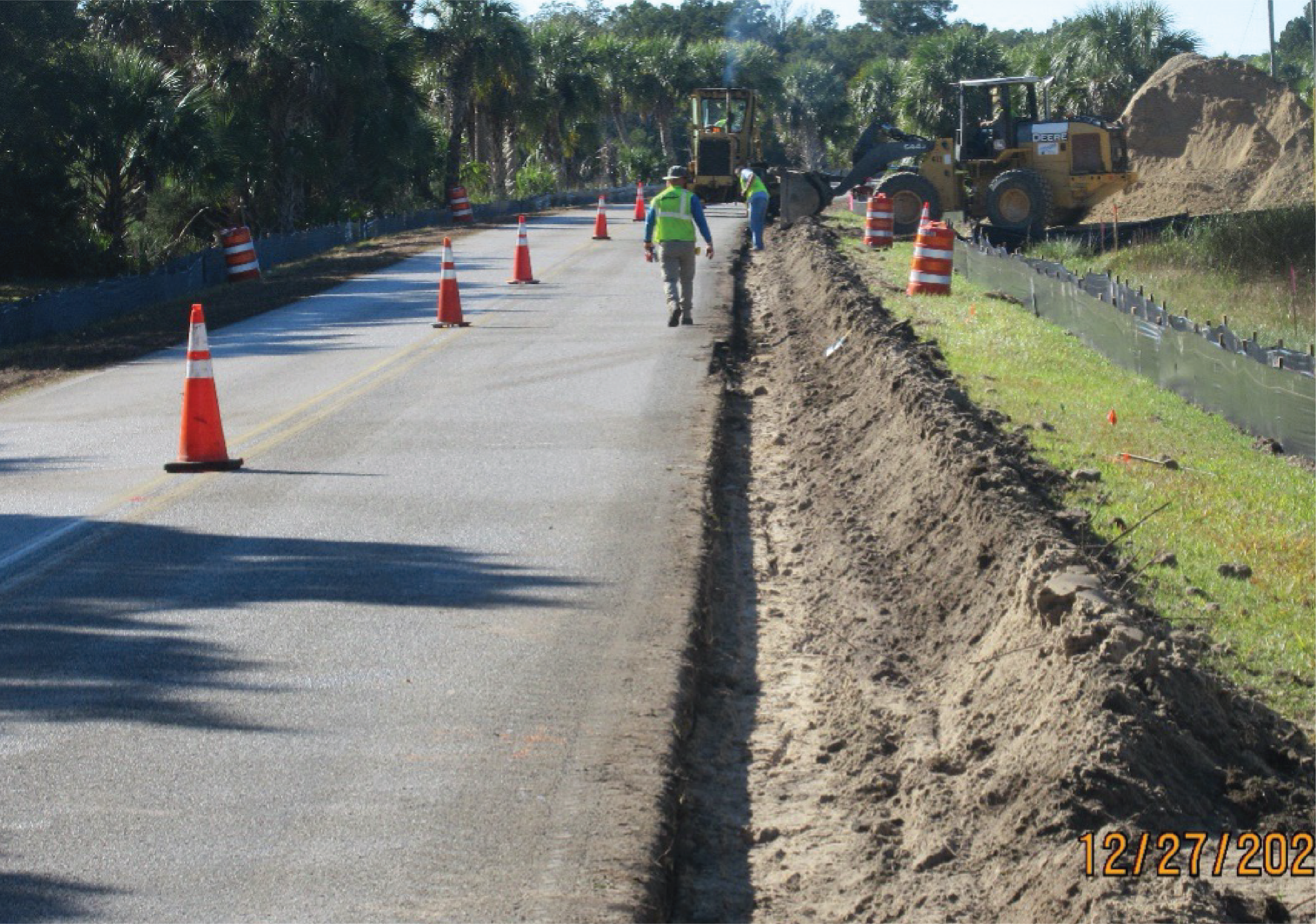

CR 40 Widening and Resurfacing Improvements*

Levy County, Florida

Design included widening and resurfacing of nearly seven (7) miles of County Road 40 from US Highway 19 to the terminus at the Gulf of Mexico.  The project was funded through the FDOT Small County Outreach Program.  This project involved extensive permitting due to the environmentally sensitive nature of the surrounding salt marsh. Coordination with FDEP, USACE, USFWS and Southwest Florida Water Management District was required. Menadier Engineering’s Principal Engineer was responsible for planning, surveying, design, permitting, CEI, and grant administration throughout the project.

NE 2nd Way Roadway Construction*

Gilchrist County, Florida

This project included new roadway construction of approximately 2.6 miles.  The existing limerock road was re-graded and paved to provide 9-ft wide travel lanes.  Four feet wide sodded shoulders and roadside swales were provided to convey stormwater to existing outfall locations.  Other improvements included upgrading signage as well as the addition of pavement markings throughout the project limits.  Funding was provided by the FDOT Small County Outreach Program.

CR 236 Widening & Resurfacing Improvements*

Gilchrist County, Florida

This project included widening and resurfacing of approximately 2.5 miles from CR 341 to US Highway 129.  The typical section provided one foot widening on each side for 10-ft travel lanes, eight (8) feet wide sodded shoulders, signage and thermoplastic striping.  Funding was provided by the FDOT Small County Outreach Program.

Suwannee Water Treatment Plant CEI*

Suwannee County, Florida

Menadier Engineering’s Principal Engineer provided administrative oversight for inspection services on the Suwannee Water Treatment Plant.  This project included resident inspection for the construction of two (2) 8-inch diameter wells with 350gpm pumping capacities, 120k gallon storage tank, an automated chlorination system, electrical equipment building, two (2) 750gpm high service pumps with one (1) 350gpm back-up high service pump, and two (2) 5,000 gallon hydropneumatics tanks.  Documentation included daily inspection reports, pictures, material quantity tracking, administering change order requests, payment application reviews, and coordination with the County, Engineer of Record and funding source.  This project was funded by FDEP State Revolving Fund.

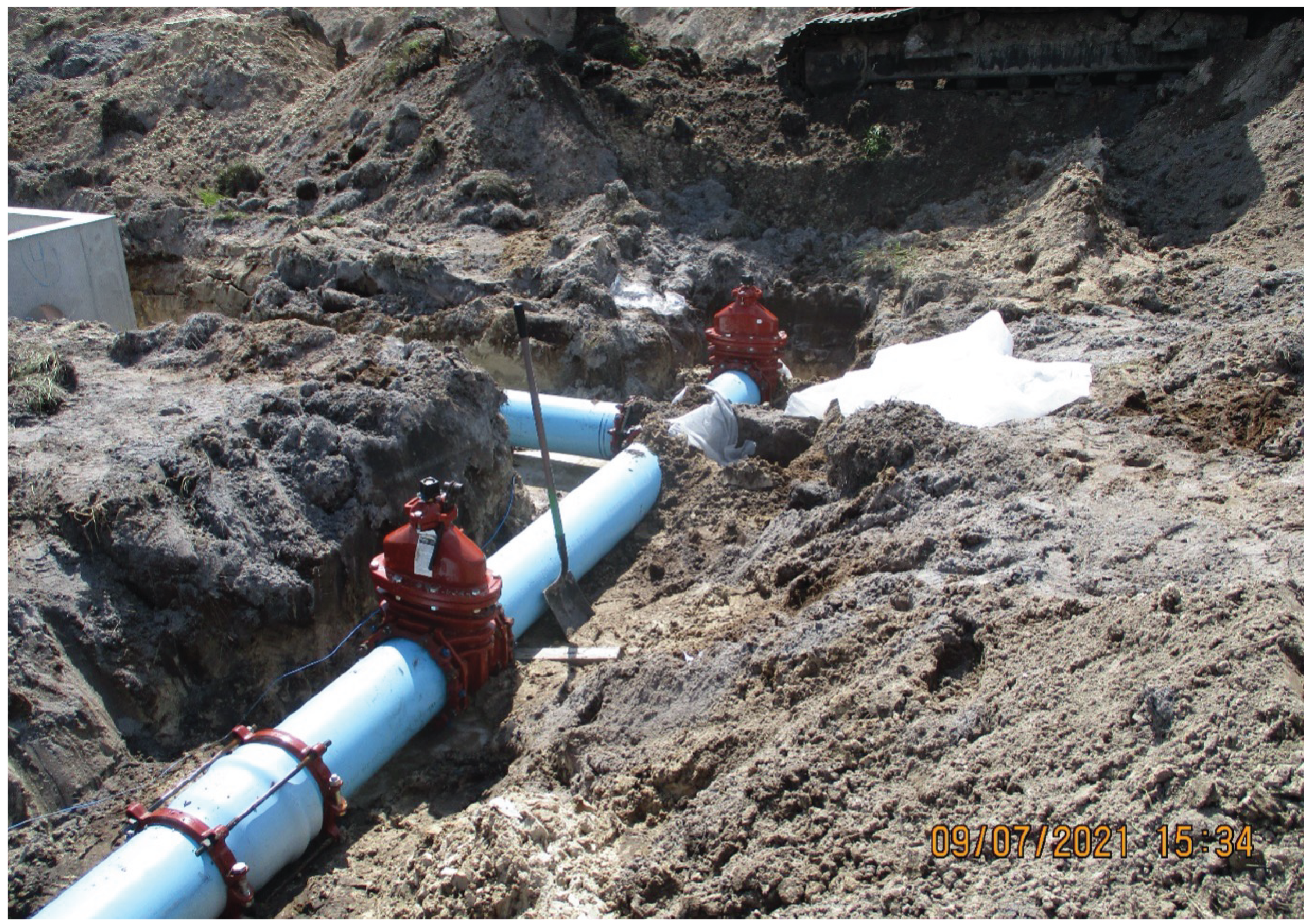

CR 136/ I-75 Water Distribution System CEI*

Suwannee County, Florida

Menadier Engineering’s Principal Engineer provided administrative oversight for resident inspection services on the distribution pipeline construction serving a portion of Suwannee County.  This project included the installation of 4,755 LF of 8-inch and 11,592 LF of 12-inch C-900 DR18 water mains including other miscellaneous appurtenances.  There were two directional bores; 173 LF of 10-inch and 960 LF of 12-inch fusible HDPE DR 11 water main along with 670 LF of 20-inch fusible HDPE DR17 casing.  Documentation included daily inspection reports, materials tracking, payment application reviews, pressure test verification, bacteriological test verification, change order administration, and coordination with the County, Engineer of Record, and funding source.

Maverick Trails Apartments

Orange Park, Florida

40 Unit Phase II Apartment Development with new clubhouse and amenity area.  Project included retrofitting a failing stormwater management facility, expanding utilities throughout the development, and associated infrastructure.  Menadier Engineering’s Principal Engineer was responsible for the planning, design, permitting, and construction administration.

Deluca Toyota Dealership

Ocala, Florida

Demolition and reconstruction of a new 65,000 SF car dealership.  Th is project was developed in two phases to allow the existing dealership to remain operational during construction of the new facility.  Our planning and engineering experts overcame a 4-ft finished floor elevation difference between the existing and proposed buildings, delivering a successful project.  Menadier Engineering’s Principal Engineer was responsible for the planning, design, permitting, and construction administration.
